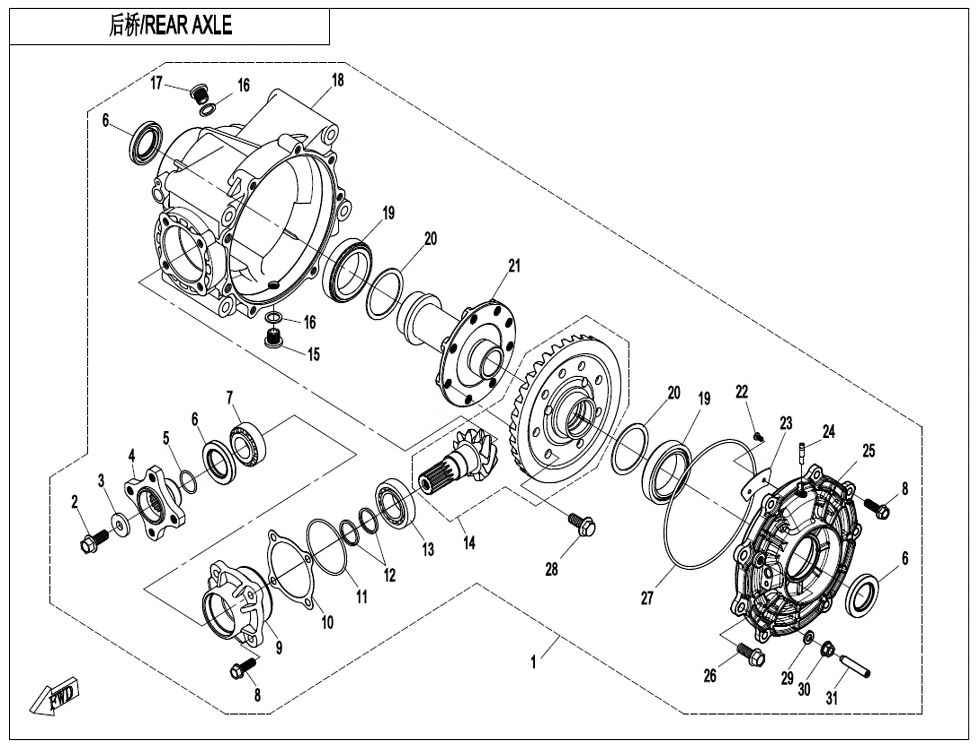

Diagram: 2022 CFMoto ZFORCE 800 Trail CF800US-A REAR AXLE (NO DIFFERENTIAL) [F33-B-V3]

Name: Diagram: 2022 CFMoto ZFORCE 800 Trail CF800US-A REAR AXLE (NO DIFFERENTIAL) [F33-B-V3]
SKU: 13c30c0155d4
Availability: InStock

Select Vehicle For Fitment

01 - REAR GEAR CASE ASSY, CFMoto OEM - Q860-330000-40003

Add for $1,399.99 each -

Only 3 left in stock

$1,399.99 each

02 -

M10x1.25x20

BOLTM10×1.25×20, Pack of 6, CFMoto OEM - 0GR0-062203

Add for $35.94 each -

Only 4 left in stock

$35.94 each

03 -

10x27.5x4

WASHER10×27.5×4, Pack of 6, CFMoto OEM - 0GR0-062204

Add for $17.94 each -

Only 1 left in stock

$17.94 each

04 -

25x2

COUPLER, CFMoto OEM - Q850-331002

Add for $59.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$59.99 each

O-RING 25×2, Pack of 2, CFMoto OEM - 0800-062205

05 -

35x50x7

O-RING 25×2, Pack of 2, CFMoto OEM - 0800-062205

Add for $9.98 each -

Only 3 left in stock

$9.98 each

OIL SEAL 35×50×7, CFMoto OEM - 0800-062204

06 -

33005(25x47x17)

OIL SEAL 35×50×7, CFMoto OEM - 0800-062204

Add for $14.99 each -

In stock

$14.99 each

07 -

M8x28

BEARING, CFMoto OEM - 30409-02500

Add for $39.99 each -

Only 4 left in stock

$39.99 each

08 -

T=0.20

BOLT M8X28, Pack of 6, CFMoto OEM - 0110-060011-0010 ***NLA REPLACED BY 0JYA-062104 ***

Add for $6.54 each -

Out of stock

$6.54 each

09 -

T=0.30

BEARING SEAT, CFMoto OEM - Q830-311002-00001

Add for $39.99 each -

Only 1 left in stock

$39.99 each

10 -

T=2.90

ADJUSTING WASHER, Pack of 6, CFMoto OEM - Q830-310023-00200

Add for $29.94 each -

Only 1 left in stock

$29.94 each

11 -

T=2.20

O-RING, CFMoto OEM - Q830-310006-10000

Add for $6.49 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$6.49 each

12 -

M14x1.25x12

ADJUSTING WASHER, Pack of 6, CFMoto OEM - Q830-311003-00800

Add for $17.94 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$17.94 each

13 -

BEARING, CFMoto OEM - 30409-03000

Add for $39.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$39.99 each

14 -

M14x1.25x12

BEVEL GEAR ASSY, REAR GEAR CASE, CFMoto OEM - Q860-3300A0-00003

Add for $349.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$349.99 each

15 - MAGNETIC OIL DRAIN BOLT (M14X1.25X12), Pack of 6, CFMoto OEM - 0180-332100

Add for $41.94 each -

Only 1 left in stock

$41.94 each

WASHER 14, Pack of 6, CFMoto OEM - 0180-011006

16 -

T=0.98

WASHER 14, Pack of 6, CFMoto OEM - 0180-011006

Add for $11.94 each -

In stock

$11.94 each

17 -

T=0.10

BOLT M14?1.25?12, Pack of 6 ? CFMoto OEM ? 0180-021008-00001

Add for $17.94 each -

Only 2 left in stock

$17.94 each

18 -

T=0.50

GEARCASE HOUSING - CFMoto OEM - Q860-330001-00002

Add for $199.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$199.99 each

19 -

T=0.90

BEARING, CFMoto OEM - 30409-05000

Add for $79.99 each -

Only 1 left in stock

$79.99 each

20 -

151x3

SHIM WASHER, 0.92 MM, CFMoto OEM - Q820-330003-00500

Add for $4.39 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$4.39 each

21 -

M10x1.25x22

RING GEAR SPOOL, CFMoto OEM - Q850-330003-00001

Add for $119.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$119.99 each

22 -

8.2x15x1.5

CROSS SCREW, M4X8, Pack of 6, CFMoto OEM - 30105-040008410

Add for $11.94 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$11.94 each

23 -

OIL GUARD, CFMoto OEM - Q830-310022

Add for $3.59 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$3.59 each

24 -

M8x45

JOINT , BREATHER HOSE, CFMoto OEM - 0180-311004-0020

Add for $3.59 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$3.59 each

25 - REAR GEAR CASE COVER - CFMoto OEM - Q860-330002-00003

Add for $59.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$59.99 each

26 - BOLT, Pack of 6 ? CFMoto OEM ? 30001-102025810

Add for $17.94 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$17.94 each

27 - O-RING 151×3, Pack of 2, CFMoto OEM - 0180-334002

Add for $5.98 each -

Only 2 left in stock

$5.98 each

28 - BOLT, Pack of 6, CFMoto OEM - 0181-313100-0010

Add for $11.94 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$11.94 each

29 - WASHER 8.2×15×1.5, Pack of 2, CFMoto OEM - 0180-334004

Add for $5.98 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$5.98 each

30 - NUT M8, Pack of 6, CFMoto OEM - 0180-334006-0010

Add for $5.94 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$5.94 each

31 - BOLT, Pack of 6, CFMoto OEM - 0180-334005-0010

Add for $11.94 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$11.94 each

SKU: 13c30c0155d4 Categories: Diagrams, Drive, Frame & Body

Vehicle	SXSs
Model	ZFORCE 800 Trail CF800US-A

Year	Make	Model
Year	Make	Model
2022	CFMoto	ZFORCE 800 Trail CF800US-A
