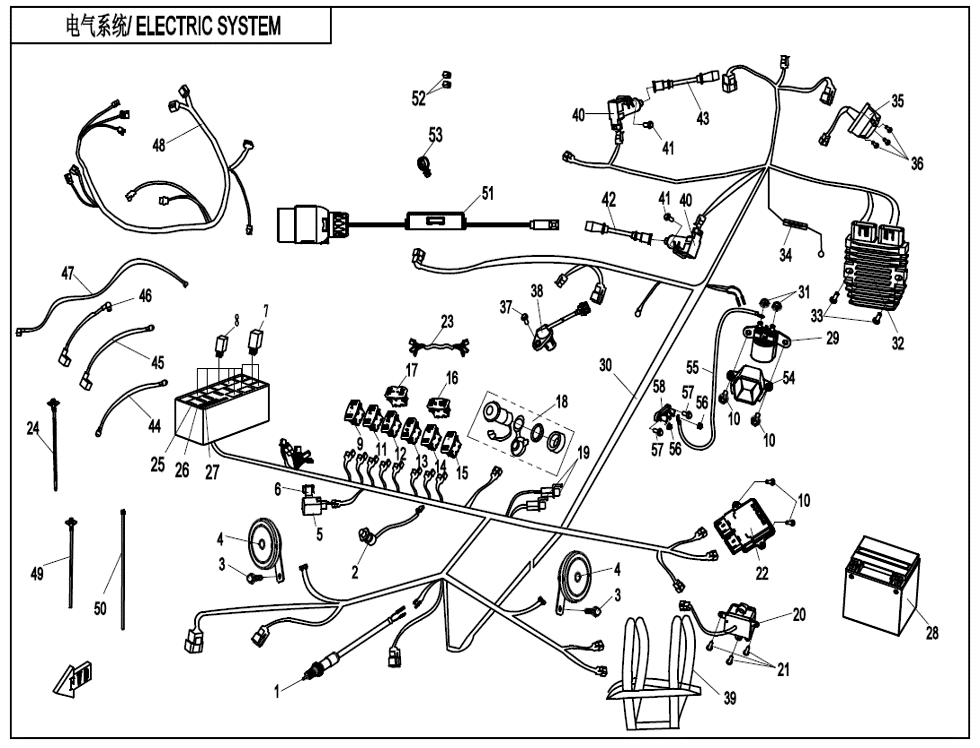

Diagram: 2022 CFMoto ZFORCE 800 Trail CF800US-A ELECTRIC SYSTEM [F15-1-V4]

Name: Diagram: 2022 CFMoto ZFORCE 800 Trail CF800US-A ELECTRIC SYSTEM [F15-1-V4]
SKU: 854260cfabe5
Availability: InStock

Select Vehicle For Fitment

01 - REAR BRAKE SWITCH, CFMoto OEM - 9010-150500

Add for $13.99 each -

Only 1 left in stock

$13.99 each

02 -

WITHOUT WIRE

CLOCK BUTTON, CFMoto OEM - 7030-170300

Add for $29.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$29.99 each

03 -

M8x14

BOLT M8X14, Pack of 6, CFMoto OEM - 30006-080014810

Add for $6.54 each -

In stock

$6.54 each

04 - ELECTRIC HORN, CFMoto OEM - 6060-150600

Add for $19.99 each -

In stock

$19.99 each

05 - FLASHER, CFMoto OEM - 4020-150340

Add for $19.99 each -

In stock

$19.99 each

CUSHION, FLASHER, SOLD EACH - CFMoto OEM - 8010-150002

06 -

ORDINARY

CUSHION, FLASHER, SOLD EACH - CFMoto OEM - 8010-150002

Add for $11.99 each -

In stock

$11.99 each

AUXILIARY RELAY, CFMoto OEM - 9010-150350

07 -

M6x12

AUXILIARY RELAY, CFMoto OEM - 9010-150350

Add for $10.99 each -

In stock

$10.99 each

08 -

SUMITOMO PLUG

RELAY, SMALL, CFMoto OEM - 5BY4-150330

Add for $10.99 each -

In stock

$10.99 each

HIGH-BEAM LIGHT SWITCH, CFMoto OEM - 5BR0-151700

09 -

SUMITOMO PLUG

HIGH-BEAM LIGHT SWITCH, CFMoto OEM - 5BR0-151700

Add for $24.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$24.99 each

BOLT M6x12, PACK OF 6 - CFMoto OEM - 30006-060012870

10 -

SUMITOMO PLUG

BOLT M6x12, PACK OF 6 - CFMoto OEM - 30006-060012870

Add for $6.99 each -

Only 2 left in stock

$6.99 each

OVERRIDE SWITCH, CFMoto OEM - 7000-151400-10000

11 -

SUMITOMO PLUG

OVERRIDE SWITCH, CFMoto OEM - 7000-151400-10000

Add for $29.99 each -

Only 1 left in stock

$29.99 each

HORN SWITCH - CFMoto OEM - 7000-151300-10000

12 -

SUMITOMO PLUG

HORN SWITCH - CFMoto OEM - 7000-151300-10000

Add for $29.99 each -

Only 1 left in stock

$29.99 each

HI/LO LIGHT SWITCH CFMoto OEM - 7000-151200-10000

13 -

SUMITOMO PLUG

HI/LO LIGHT SWITCH CFMoto OEM - 7000-151200-10000

Add for $24.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$24.99 each

LIGHT SWITCH, CFMoto OEM - 7000-151100-10000

14 -

SUMITOMO PLUG

LIGHT SWITCH, CFMoto OEM - 7000-151100-10000

Add for $29.99 each -

In stock

$29.99 each

SWITCH, WARNING, CFMoto OEM - 7000-151600-10000

15 -

SUMITOMO PLUG

SWITCH, WARNING, CFMoto OEM - 7000-151600-10000

Add for $29.99 each -

Only 2 left in stock

$29.99 each

ENGINE KILL SWITCH - CFMoto OEM - 7000-151000-10000

16 -

SUMITOMO PLUG

ENGINE KILL SWITCH - CFMoto OEM - 7000-151000-10000

Add for $29.99 each -

In stock

$29.99 each

TURN LIGHT SWITCH, CFMoto OEM - 7000-151500-10000

17 -

ST4.8x16

TURN LIGHT SWITCH, CFMoto OEM - 7000-151500-10000

Add for $29.99 each -

Only 4 left in stock

$29.99 each

POWER SOCKET, CFMoto OEM - 7020-150500-1000

18 -

FOR ZFORCE 800 ONLY, DELPHI MT05.3

POWER SOCKET, CFMoto OEM - 7020-150500-1000

Add for $39.99 each -

Only 3 left in stock

$39.99 each

19 - STARTER DIODE, CFMoto OEM - 6090-150500

Add for $5.49 each -

In stock

$5.49 each

20 -

SWTICH, 2WD/4WD - CFMOTO OEM - 7030-160700-10002

Add for $69.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$69.99 each

TAPPING SCREW ST4.8X16, Pack of 6, CFMoto OEM - 30110-480160010

21 -

10A

TAPPING SCREW ST4.8X16, Pack of 6, CFMoto OEM - 30110-480160010

Add for $17.94 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$17.94 each

22 -

15A

ECU - CFMoto OEM - 0800-174000-20001

Add for $539.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$539.99 each

LINK CABLE, SWITCH, CFMoto OEM - 7000-152100

23 -

DYNAVOLT,12V30Ah

LINK CABLE, SWITCH, CFMoto OEM - 7000-152100

Add for $10.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$10.99 each

24 -

INTEGRATED RELAY BOX@SUMITOMO PLUG

TIE BAND, CFMoto OEM - 7030-150005

Add for $17.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$17.99 each

25 -

FUSE (5A), Pack of 2, CFMoto OEM - 8080-151301

Add for $2.62 each -

Only 2 left in stock

$2.62 each

FUSE (10A), Pack of 2, CFMoto OEM - 806A-151302

26 -

M6x30

FUSE (10A), Pack of 2, CFMoto OEM - 806A-151302

Add for $5.98 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$5.98 each

FUSE (15A), Pack of 2, CFMoto OEM - 806A-151305

27 -

SUMITOMO PLUG

FUSE (15A), Pack of 2, CFMoto OEM - 806A-151305

Add for $4.38 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$4.38 each

28 -

M5x30

BATTERY, Dynavolt 12v30ah - CFMoto OEM - 31023004

Add for $189.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$189.99 each

29 -

M6x20

STARTER RELAY, CFMoto OEM - 5270-150500

Add for $39.99 each -

In stock

$39.99 each

30 - MAIN WIRE HARNESS - CFMoto OEM - 7000-150100-C0000

Add for $689.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$689.99 each

NUT, Pack of 6, CFMoto OEM - 30204-060810

31 -

M6x40

NUT, Pack of 6, CFMoto OEM - 30204-060810

Add for $6.54 each -

In stock

$6.54 each

32 - REGULATOR - CFMoto OEM - 0800-177000-20000

Add for $459.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$459.99 each

33 - BOLT M6×30, Pack of 6, CFMoto OEM - 30006-060030810

Add for $6.54 each -

Only 2 left in stock

$6.54 each

34 - FUSE 30 AMP., CFMoto OEM - 7020-150110

Add for $14.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$14.99 each

POWER SOCKET, TRAILER, CFMoto OEM - 7020-150800-1000

35 -

SUMITOMO PLUG

POWER SOCKET, TRAILER, CFMoto OEM - 7020-150800-1000

Add for $49.99 each -

Only 4 left in stock

$49.99 each

36 - SCREW, Pack of 6, CFMoto OEM - 30105-050030410

Add for $6.54 each -

In stock

$6.54 each

37 - BOLT M6x20, Pack of 6 - CFMoto OEM - 30006-060020870

Add for $11.94 each -

Only 3 left in stock

$11.94 each

38 - SPEED SENSOR, CFMoto OEM - 7020-150400

Add for $49.99 each -

Only 3 left in stock

$49.99 each

39 -

BATTERY STRAP, CFMoto OEM - 9060-152100

Add for $8.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$8.99 each

40 -

M6x16

IGNITION COIL, CFMoto OEM - 0800-178000

Add for $99.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$99.99 each

41 -

WITH KAIDI PLUG

BOLT, Pack of 6, CFMoto OEM - 30006-060040810

Add for $6.54 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$6.54 each

42 - SPARK PLUG WIRE, 1, CFMoto OEM - 0800-179100

Add for $29.99 each -

Out of stock

$29.99 each

43 - HIGH-TENSION CABLE 2 - CFMOTO OEM - 0800-179200-10000

Add for $31.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$31.99 each

44 - NEGATIVE CABLE, STARTER MOTOR, CFMoto OEM - 7000-150620

Add for $22.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$22.99 each

45 - NEGATIVE CABLE, BATTERY - CFMoto OEM - 700V-150420-1500

Add for $31.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$31.99 each

46 - POSITIVE CABLE, BATTERY - CFMoto OEM - 700V-150410-1500

Add for $21.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$21.99 each

47 - POSITIVE CABLE, STARTER MOTOR, CFMoto OEM - 7000-150520

Add for $69.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$69.99 each

48 - AUXILIARY CABLE, EFI - CFMoto OEM - 7000-150200-30000

Add for $459.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$459.99 each

49 - TIE BAND, Pack of 6, CFMoto OEM - 801F-100101

Add for $6.54 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$6.54 each

50 - TIE BAND, Pack of 6, CFMoto OEM - 9010-150004

Add for $6.54 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$6.54 each

51 - TRAILER POWER HARNESS - CFMoto OEM - 9010-151020-20000

Add for $79.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$79.99 each

52 - PLUG, PDA, CFMoto OEM - 905B-150103

Add for $3.59 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$3.59 each

53 - CLAMP, FRONT BRAKE HOSE, CFMoto OEM - A000-050015

Add for $1.31 each -

Only 2 left in stock

$1.31 each

54 - RELAY COVER - CFMoto OEM - 7000-044711

Add for $5.49 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$5.49 each

55 - STARTER SOLENOID CABLE - CFMoto OEM - 7000-150530

Add for $29.99 each -

Only 2 left in stock

$29.99 each

56 -

M6x40

NUT, Pack of 6, CFMoto OEM - 30204-060810

Add for $6.54 each -

In stock

$6.54 each

57 -

M6x16

BOLT M6x16, Pack of 6 - CFMoto OEM - 30006-060016870

Add for $6.54 each -

In stock

$6.54 each

58 - TERMINAL, CABLE - CFMoto OEM - 5SY0-151610-6000

Add for $14.99 each -

Usually ships within 2-3 Weeks.
Call or email for Rush Options.

$14.99 each
