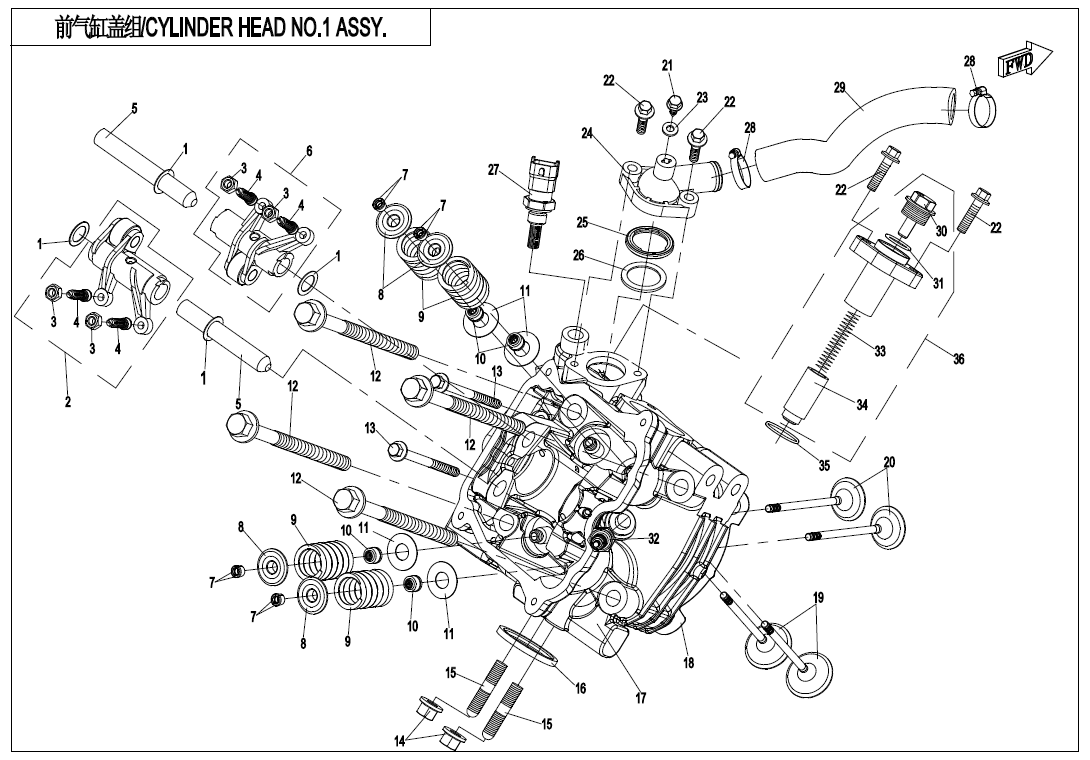

Diagram: 2020 CFMoto ZFORCE 800 Trail CF800US-A CYLINDER HEAD NO.1 ASSY. [E02-2-V3]

Diagram: 2020 CFMoto ZFORCE 800 Trail CF800US-A CYLINDER HEAD NO.1 ASSY. [E02-2-V3]
Select Vehicle For Fitment
Placeholder
01 -
12.3x18.5x0.5
WASHER 12.3×18.5×0.5, CFMoto OEM - 0800-022002
$1.31 each
Placeholder
02 - ROCKER ARM ASSY. EXHAUST, CFMoto OEM - 0800-022600-20000
$59.99 each
Placeholder
03 - ADJUST NUT, CFMoto OEM - 0800-022506
$1.31 each
Placeholder
04 - ADJUST SCREW, CFMoto OEM - 0800-022510
$7.99 each
Placeholder
05 - SHAFT, ROCKER ARM, CFMoto OEM - 0800-022001
$9.99 each
Placeholder
06 - ROCKER ARM ASSY. INTAKE, CFMoto OEM - 0800-022500-20000
$59.99 each
LOCK CLIP, VALVE, CFMoto OEM - 0800-022016
07 - LOCK CLIP, VALVE, CFMoto OEM - 0800-022016
$5.49 each
Placeholder
08 - UPPER SEAT, VALVE, CFMoto OEM - 0800-022007
$5.99 each
Placeholder
09 - SPRING, VALVE, CFMoto OEM - 0800-022006-10000
$5.49 each
VALVE STEM SEAL, Pack of 2 - CFMoto OEM - 0010-022500-10000
10 - VALVE STEM SEAL, Pack of 2 - CFMoto OEM - 0010-022500-10000
$7.98 each
Placeholder
11 - LOWER SEAT, VALVE, CFMoto OEM - 0800-022008
$2.39 each
Placeholder
12 - BOLT, CYLINDER - CFMoto OEM - 0800-022003-00001
$2.99 each
Placeholder
13 - BOLT M6X80 - CFMoto OEM - 0800-022009-00001
$1.31 each
NUT, Pack of 6, CFMoto OEM - 8010-020001
14 -
M8
NUT, Pack of 6, CFMoto OEM - 8010-020001
$6.54 each
Placeholder
15 - STUD M8X42 - CFMoto OEM - 0180-022003-00001 *** NLA REPLACED BY 0180-022003-00002 ***
$2.39 each
EXHAUST PIPE GASKET, CFMoto OEM - 0800-022300
16 - EXHAUST PIPE GASKET, CFMoto OEM - 0800-022300
$8.99 each
Placeholder
18 - GASKET, CYLINDER HEAD - CFMoto OEM - 0800-022200-00002
$29.99 each
INTAKE VALVE, CFMoto OEM - 0800-022004
19 - INTAKE VALVE, CFMoto OEM - 0800-022004
$22.99 each
EXHAUST VALVE, CFMoto OEM - 0800-022005
20 - EXHAUST VALVE, CFMoto OEM - 0800-022005
$29.99 each
TAPPING SCREW ST4.8×13, Pack of 6, CFMoto OEM - 30132-480130030
21 -
ST4.8x13
TAPPING SCREW ST4.8×13, Pack of 6, CFMoto OEM - 30132-480130030
$6.54 each
BOLT M6×25, Pack of 6, CFMoto OEM - 0010-021017-0010
22 -
M6x25
BOLT M6×25, Pack of 6, CFMoto OEM - 0010-021017-0010
$6.54 each
WASHER 5.3×11×15, Pack of 6, CFMoto OEM - 0800-022011
23 -
5.3x11x1.5
WASHER 5.3×11×15, Pack of 6, CFMoto OEM - 0800-022011
$6.54 each
THERMOSTAT HOUSING, CFMoto OEM - 0800-022013-10000
24 - THERMOSTAT HOUSING, CFMoto OEM - 0800-022013-10000
$11.99 each
SEAL RING, Pack of 2, CFMoto OEM - 0010-022802
25 - SEAL RING, Pack of 2, CFMoto OEM - 0010-022802
$5.98 each
WASHER 20.5×30×0.8, CFMoto OEM - 0800-026002
26 -
20.5x30x0.8
WASHER 20.5×30×0.8, CFMoto OEM - 0800-026002
$1.31 each
COOLANT TEMPERATURE SENSOR, CFMoto OEM - 0800-026200
27 - COOLANT TEMPERATURE SENSOR, CFMoto OEM - 0800-026200
$59.99 each
Placeholder
28 -
D25
CLAMP, CFMoto OEM - 30603-125020
$3.59 each
Placeholder
29 - CONNECTING PIPE, CFMoto OEM - 0JYA-026001
$9.99 each
Placeholder
30 - SCREW PLUG, TENSIONER, CFMoto OEM - 0800-022402
$8.99 each
Placeholder
31 -
17x1.45
O-RING, Pack of 2, CFMoto OEM - 0800-022407
$9.98 each
SPARK PLUG, CFMoto OEM - 0800-022800
32 - SPARK PLUG, CFMoto OEM - 0800-022800
$12.99 each
CHAIN TENSIONER SPRING, CFMoto OEM - 0800-022405
33 - CHAIN TENSIONER SPRING, CFMoto OEM - 0800-022405
$5.49 each
PLUNGER, CHAIN TENSIONER, CFMoto OEM - 0800-022410
34 - PLUNGER, CHAIN TENSIONER, CFMoto OEM - 0800-022410
$3.59 each
TENSIONER SEAL RING, CFMoto OEM - 0800-022017
35 -
20.8x2.4
TENSIONER SEAL RING, CFMoto OEM - 0800-022017
$1.31 each
Placeholder
36 - TENSIONER, CFMoto OEM - 0800-022400-10000
$25.99 each
